- Actuator Type: Toggle
- Color: Light Almond
- Contact Material: Silver
- Current Rating: 15 A
- Dielectric Strength: 1500 V

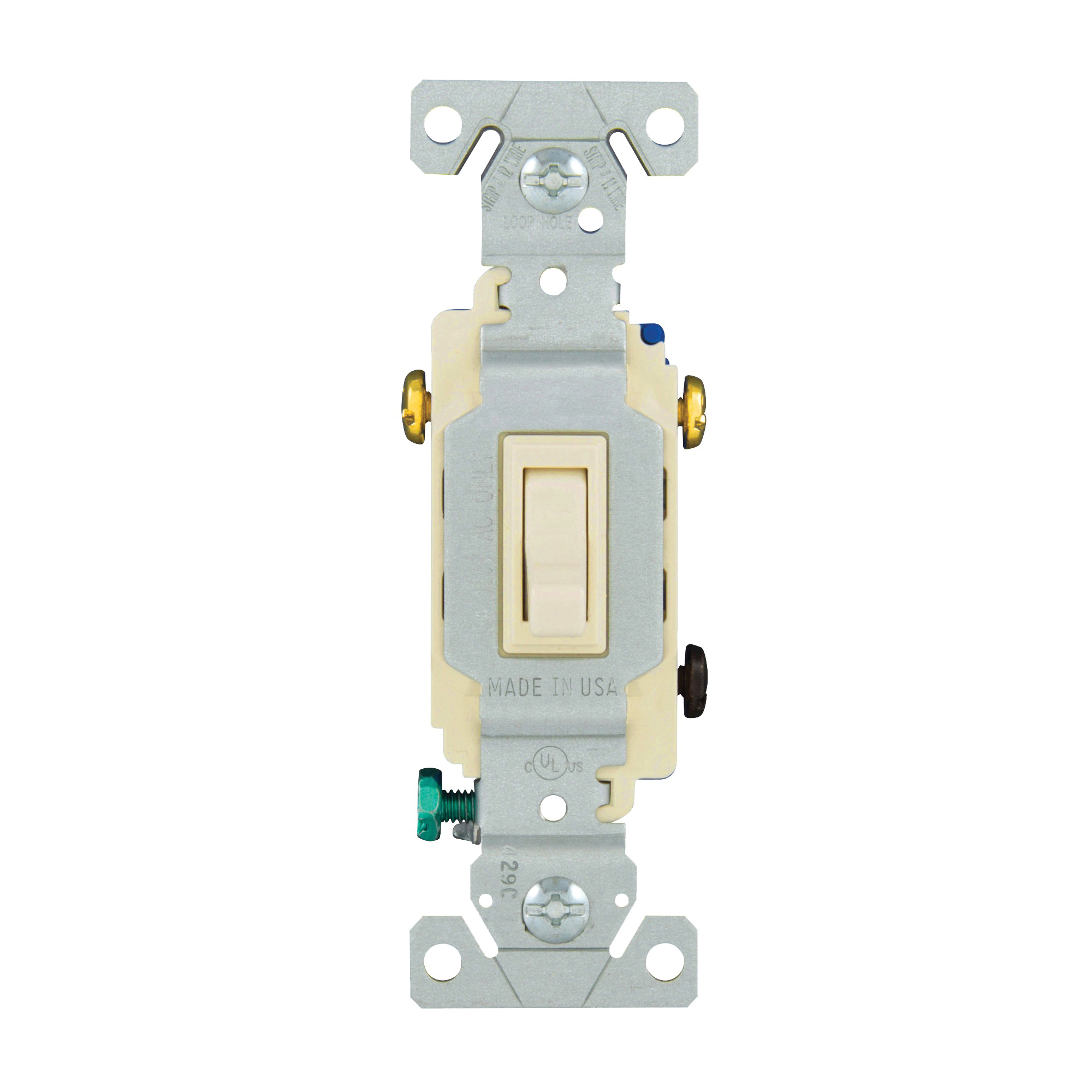

- Model #: 1303-7LA
- UPC #: 032664750922
- SKU: 7193550
Longer, wider strap on toggle switches provides 40% more contact area to wallboard. Virtually eliminates floating installations. Industrial design cam-action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call-backs due to jobsite breakage. Patented built-in wire looper for pre-looping. Three-way switches feature additional push-in common termination for feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted, Phillips and Robertson head tools for installations in both the US and Canada.
| Actuator Type | Toggle |
|---|
| Color | Light Almond |
|---|
| Contact Material | Silver |
|---|
| Current Rating | 15 A |
|---|
| Dielectric Strength | 1500 V |
|---|
| Dimensions | 4.2 in L x 1.44 in W x 1.103 in D |
|---|
| Housing Material | Polycarbonate |
|---|
| Mounting Type | Wall |
|---|
| Temperature Rating | -20 to 60 deg C |
|---|
| Voltage Rating | 120 V |
|---|
| Wattage Rating | 0.5 hp |
|---|
