Eaton

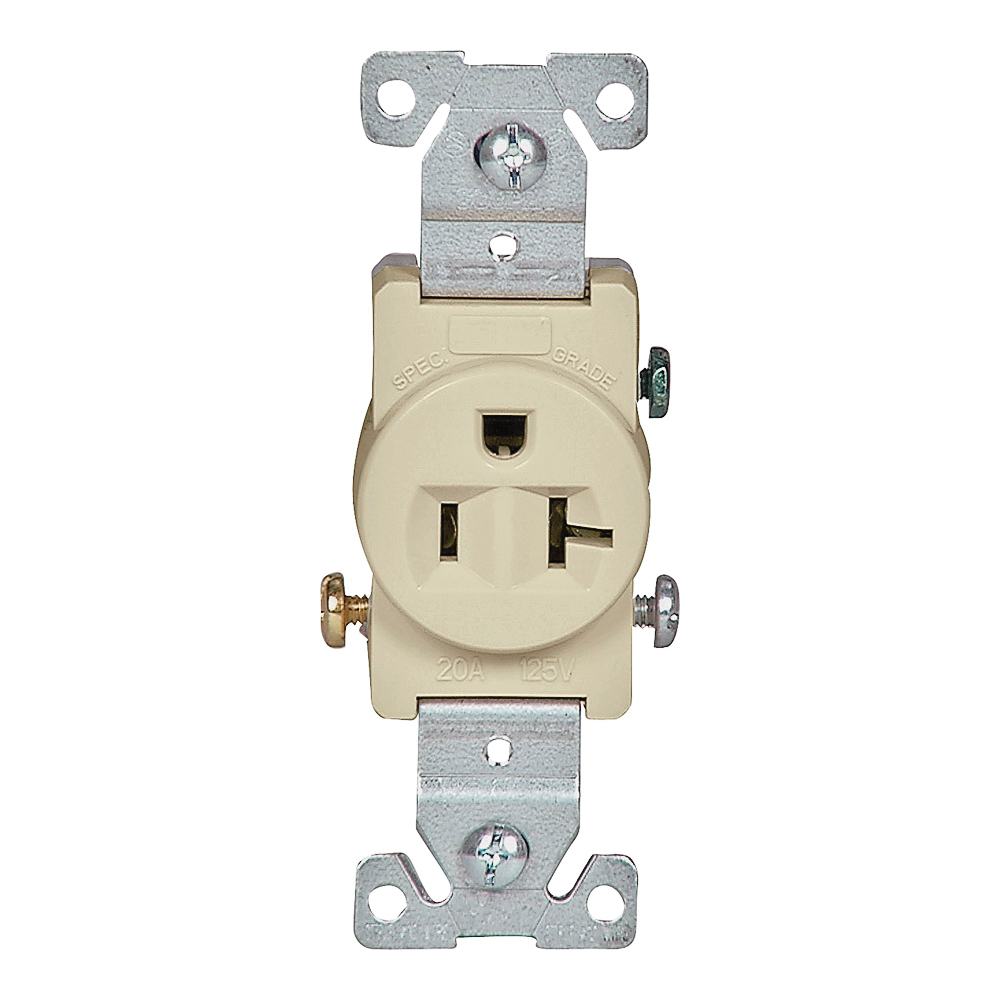

Eaton 1877V-BOX Single Receptacle, 2-Pole, 125 V, 20 A, Side Wiring, NEMA: NEMA 5-20R, Ivory
- Color: Ivory
- Current Rating: 20 A
- Dimensions: 3.28 in L x 1.31 in W x 0.83 in D
- Includes: Screws
- Material: PVC
- Model #: 1877V-BOX
- UPC #: 032664184406
- SKU: 4249983
Product Details
Meets all UL 498 requirements. Triple wire line contacts provide excellent long term plug retention. Arc-resistant thermostat face. Side wire terminals accept up to #10 solid or stranded wire. Terminal screws backed out. Tamper-resistant receptacles have a UL listed shutter system. 20 A, 125 V.Item Specifications
| Color | Ivory |
|---|---|
| Current Rating | 20 A |
| Dimensions | 3.28 in L x 1.31 in W x 0.83 in D |
| Includes | Screws |
| Material | PVC |
| Mounting Type | Flush |
| NEMA Configuration | NEMA 5-20R |
| Number of Poles | 2 |
|---|---|
| Number of Wires | 3 |
| Operating Temperature | -4 to 140 deg F |
| Voltage Rating | 125 V |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Side |
MORE DETAILS:
- Eaton_Wiring_Devices_100018293_Catalog.pdf
- Eaton_Wiring_Devices_100029354_Specification_Sheet.pdf
- Eaton_100029354_Specification_Sheet.pdf
- Application: For commercial and residential applications
