Eaton

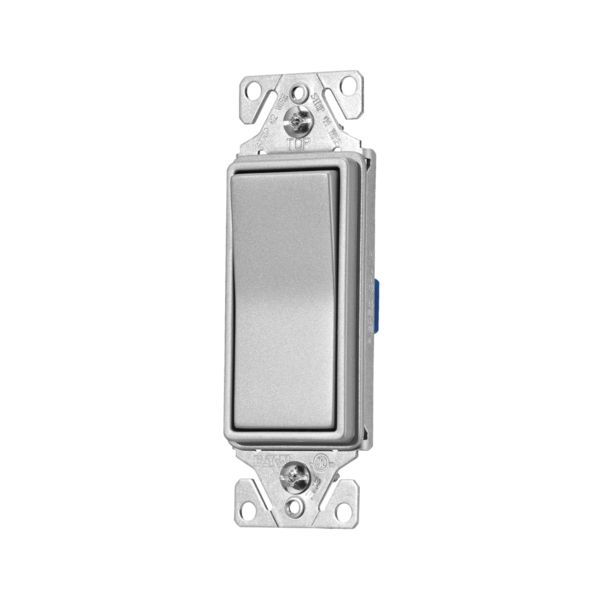

Eaton 7500 Series 7503SG-K-L Rocker Switch, 15 A, 120/277 V, 3-Way, Thermoplastic Housing Material, Silver Granite
- Color: Silver Granite
- Contact Configuration: 3-Way
- Current Rating: 15 A
- Housing Material: Thermoplastic
- Mounting Type: Strap
- Model #: 7503SG-K-L
- UPC #: 032664736964
- SKU: 7193451
Product Details
Ultrasonic welding and integrated construction of the strap and body. Back wire clamps on the side terminals for installation of #12 and #14 wire. Thermoplastic rocker, top and back body are virtually unbreakable. Screws accept slotted, Phillips and Robertson head tools for installation in both the USA and Canada. Longer, wider strap provides 40% more contact area to wall board. Virtually eliminates floating installations. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 15 A, 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. Push-in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL listed, meets all UL20 requirements.Item Specifications
| Color | Silver Granite |
|---|---|
| Contact Configuration | 3-Way |
| Current Rating | 15 A |
| Housing Material | Thermoplastic |
|---|---|
| Mounting Type | Strap |
| Voltage Rating | 120/277 V |
MORE DETAILS:
- Eaton_Wiring_Devices_100073552_Catalog.pdf
- Eaton_100073552_Catalog.pdf
- Application: For use in home, including door and cabinet hardware, lighting and plumbing fixtures and appliances
