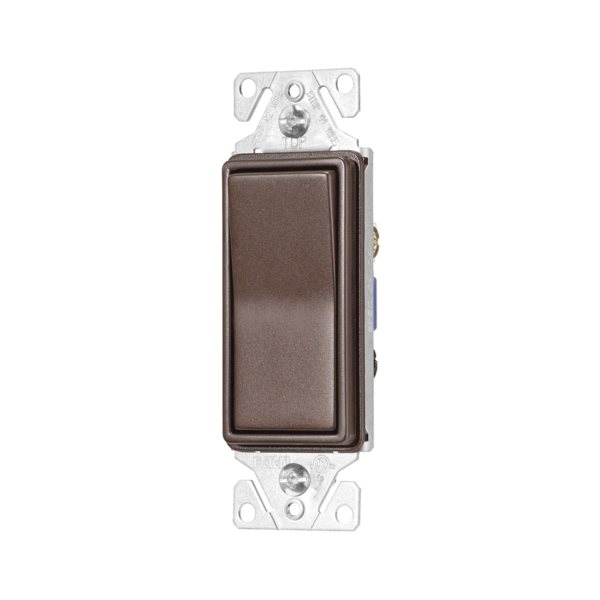

Eaton 7500 Series 7503RB-K-L Rocker Switch, 15 A, 120/277 V, 3-Way, Thermoplastic Housing Material, Oil-Rubbed Bronze
- Color: Oil-Rubbed Bronze
- Contact Configuration: 3-Way
- Current Rating: 15 A
- Dimensions: 1.83 in L x 3.85 in W x 5.833 in H
- Housing Material: Thermoplastic
- Model #: 7503RB-K-L
- UPC #: 032664745270
- SKU: 7193444
Product Details
Ultrasonic welding and integrated construction of the strap and body. Back wire clamps on the side terminals for installation of #12 and #14 wire. Thermoplastic rocker, top and back body are virtually unbreakable. Screws accept slotted, Phillips and Robertson head tools for installation in both the USA and Canada. Longer, wider strap provides 40% more contact area to wall board. Virtually eliminates floating installations. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 15 A, 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. Push-in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL listed, meets all UL20 requirements.Item Specifications
| Color | Oil-Rubbed Bronze |
|---|---|
| Contact Configuration | 3-Way |
| Current Rating | 15 A |
| Dimensions | 1.83 in L x 3.85 in W x 5.833 in H |
| Housing Material | Thermoplastic |
| Mounting Type | Strap |
|---|---|
| Number of Phases | 1 |
| Number of Poles | 3 |
| Voltage Rating | 120/277 V |
MORE DETAILS:
- Eaton_Wiring_Devices_100073552_Catalog.pdf
- Eaton_100073552_Catalog.pdf
- Application: For use in home, including door and cabinet hardware, lighting and plumbing fixtures and appliances
