Raco

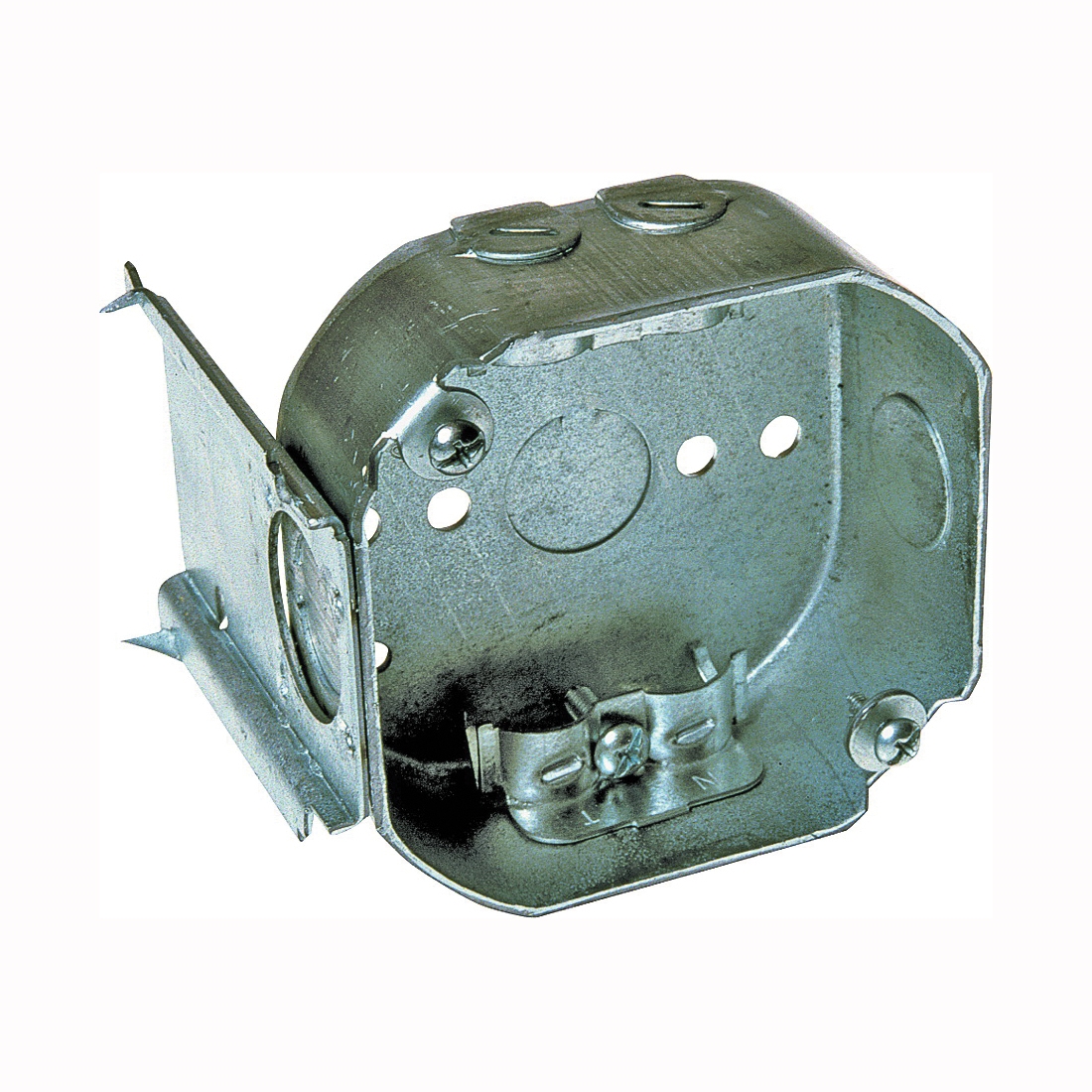

Raco 160 Octagon Box, 4.067 in OAW, 1-1/2 in OAD, 3.579 in OAH, 1-Gang, 3-Knockout, Steel Housing Material, Gray
- Color: Gray
- Cubic Capacity: 15-1/2 cu-in
- Housing Material: Steel
- Mounting Type: Bracket
- Number of Gangs: 1
- Model #: 160
- UPC #: 050169001608
- SKU: 6293831
Product Details
With Non-metallic sheathed cable clamps. Two 1/2 in conduit knockouts and four cable knockouts, (sides). One 1/2 in conduit knockout, (bottom). Can be used in the installation of ceiling or wall lighting fixtures or as a junction box. Not designed for ceiling fan support. 50 lb maximum recommended static load. J side-mount bracket with spurs and holes for toe-nailing, for wood studs or joists. UPC bar code. UL listed.Item Specifications
| Color | Gray |
|---|---|
| Cubic Capacity | 15-1/2 cu-in |
| Housing Material | Steel |
| Mounting Type | Bracket |
| Number of Gangs | 1 |
| Number of Knockouts | 3 |
|---|---|
| Number of Outlets | 4 |
| Overall Depth | 1-1/2 in |
| Overall Height | 3.579 in |
| Overall Width | 4.067 in |
