Eaton

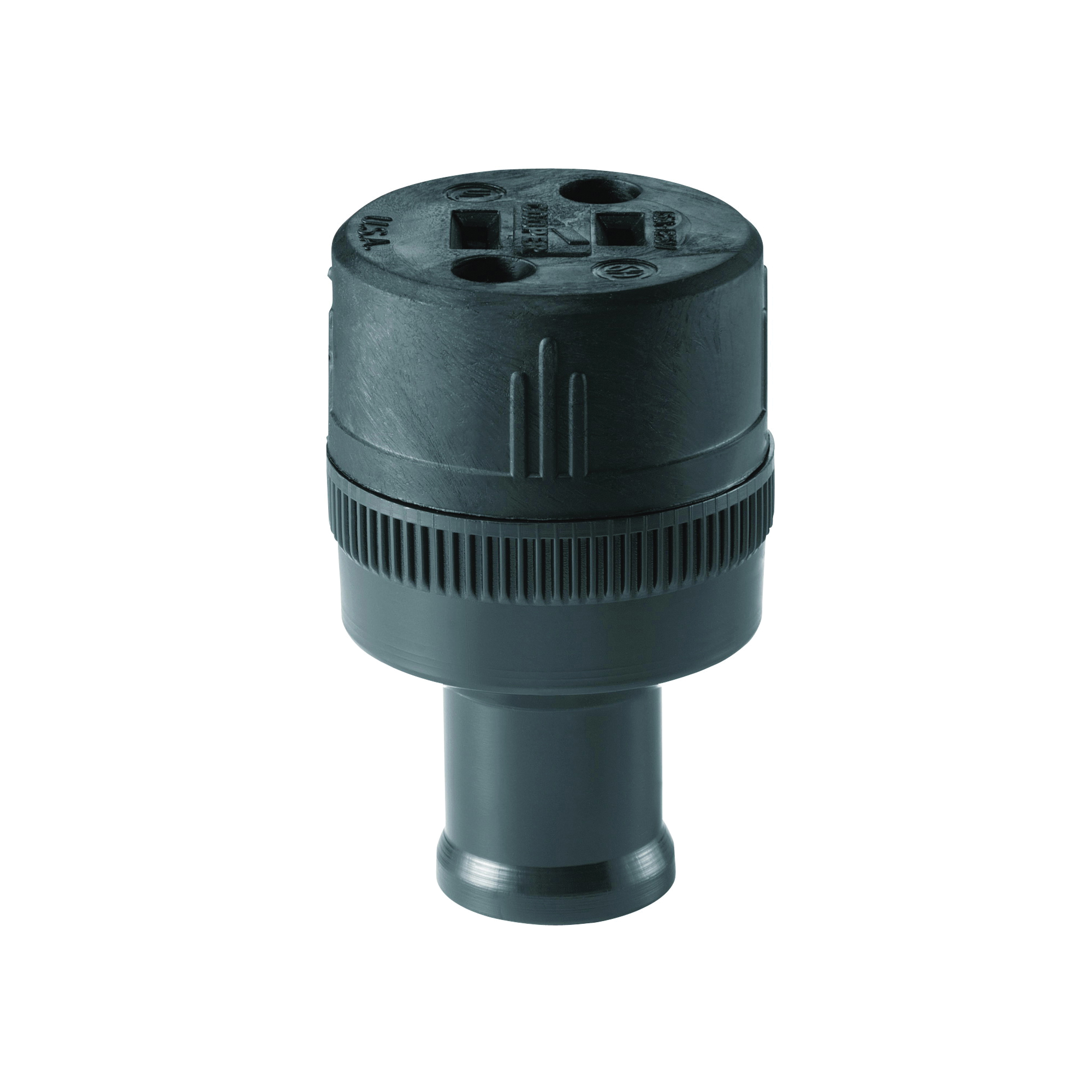

Eaton 224-BOX Electrical Connector, 2-Pole, 15 A, 125 V, Screw, NEMA: NEMA 1-15, Black
- Cable/Wire Size: 1/4 to 39/64 in
- Color: Black
- Connection Type: Screw
- Current Rating: 15 A
- Dimensions: 2-1/2 in L x 1-1/2 in W x 1-1/2 in H
- Model #: 224-BOX
- UPC #: 032664480102
- SKU: 4160958
Product Details
Standard-grade. Connectors meet all UL 498 requirements. Resists chemical attack and stays flexible in extremely low temperatures. Polypropylene, PVC and thermoplastic rubber. Meets flammability requirements per UL 94. 15 A, 125 V. -20 to +70 deg C. NEMA 1-15. Boxed.Item Specifications
| Cable/Wire Size | 1/4 to 39/64 in |
|---|---|
| Color | Black |
| Connection Type | Screw |
| Current Rating | 15 A |
| Dimensions | 2-1/2 in L x 1-1/2 in W x 1-1/2 in H |
| Grounding Type | Non-Grounded |
| Material | Rubber |
| NEMA Configuration | NEMA 1-15 |
|---|---|
| Number of Poles | 2 |
| Number of Wires | 2 |
| Operating Temperature | -20 to 60 deg C |
| Type | Straight Blade |
| Voltage Rating | 125 V |
